Professional PCB design services

Products utilizing SunCad's PCB layouts:

Regen's ReNu solar panel

RHINO board

University of Cape Town
S. Africa

Collapsible keyboard by Think Outside

Philips flat-screen TV

Internet radio by 3Com

Apple clone products by Power Computing, Motorola and Umax

Electronic hand tools by Zircon

Audio mixers by Euphonix

Fingerprint scanner by Indivos

PC board expertise:
High-speed, extremely high-density digital designs, analog, mixed signal

...ask us to view some examples.

Latest packaging technologies

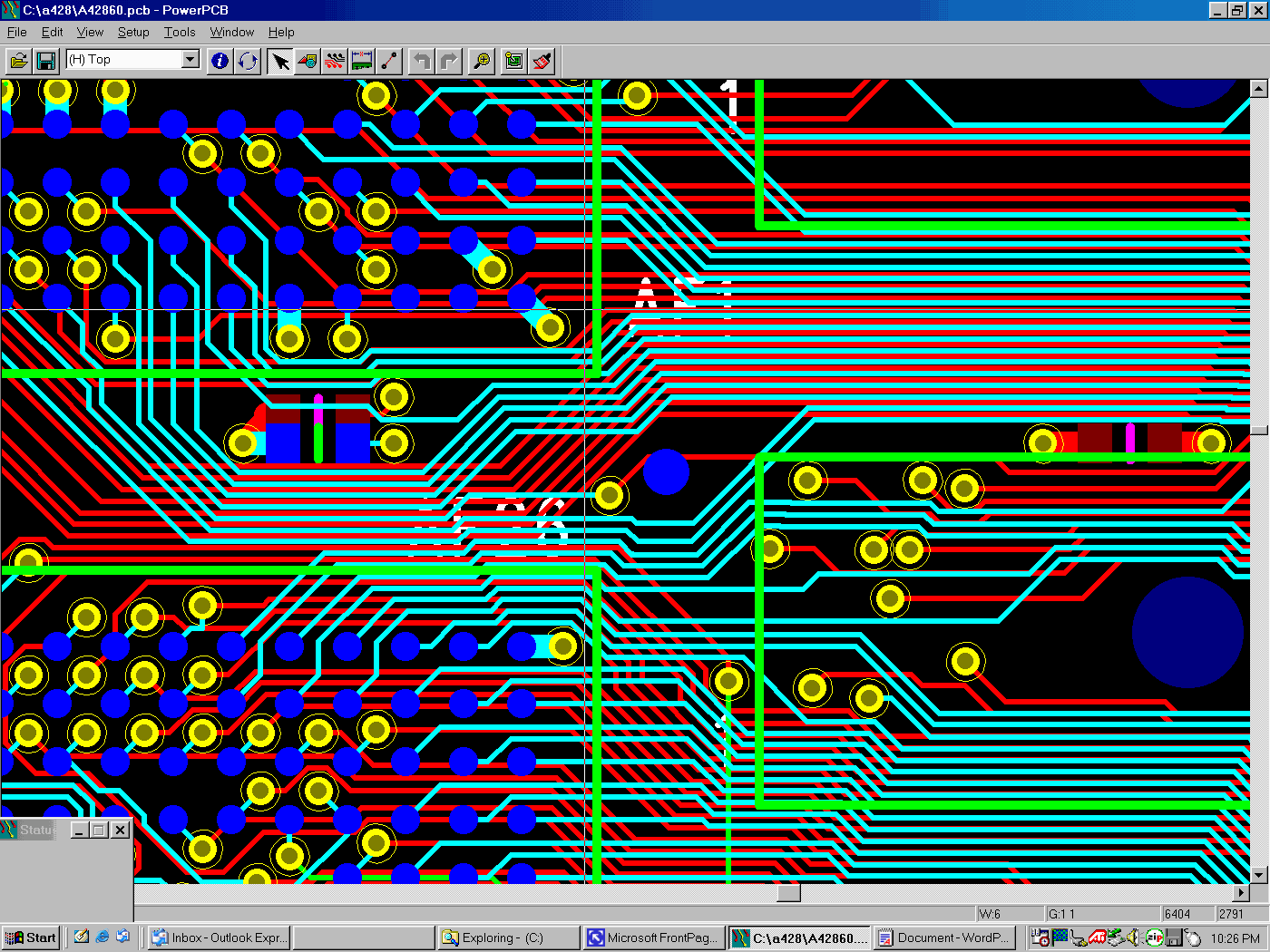

SunCad utilizes Altium Designer and PADS layout tools for our designs.

Mentor Graphics


Contact SunCad for a quote

(512) 518-3642

or E-mail:

Alan Sansoucie

SunCad Designs has been producing exceptional PCB designs internationally for nearly 20 years, in many areas, including telecom, audio, video, medical, computer, even drilling and motor control applications. SunCad's lead designer has over 25 years of experience in the industry.

SunCad prides itself on an exceptional record of producing error-free designs and keeping deadline promises. Most importantly, you can always be assured a highly experienced designer will handle your PC board layout with a personal and professional commitment.


What our clients have to say:

"We were very happy with your quality and speed. I think we’ve found our outside source for layout."

Scott – Onset Computer

"I trust you based on the accuracy and high quality of all your work that I've seen so far. And, did I mention, QUICK?"

Dave - Element Labs

"I would like to thank you for doing a great job. I appreciate the quality of your work and your attention to detail. You will definitely be considered for our next job.”

Phil - Victory Controls

"I'd like to add that Alan did a great job and delivered everything on time. As far as I'm concerned you're the first in line for the next job."

Jake - Regen Contract Engineer

"Jim will be happy to see this board done. We originally attempted to outsource this to a large design house... what a disaster that was. This has gone VERY smoothly."

Jeff - Euphonix

"SunCad was heaven to work with."

Rich - Power Computing



Get Personal
Work one-on-one with a designer with over 20 years experience and top-notch ability. We won't turn your PCB layout over to a low-level designer.

Quotes and Scheduling

SunCad has built its business on consistently delivering quality products on time.
Call or email us  for a quote and a delivery date.

Some satisfied clients:

Tesla Motors
IQuum Inc.
Charm Sciences
Markury Scientific
University of Cape Town
Philips Components
3COM Inc.
Think Outside
UC Berkeley
R2 Technology
Boston Scientific
Motorola Computer
Power Computing

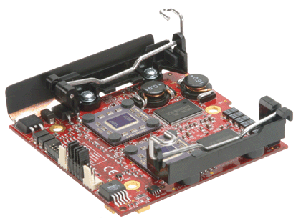

Dual G4 Processor Card

PCB Manufacturing

We work together with many top-quality board manufacturers and can arrange for delivery of your final production boards directly to you or your customer.

SunCad's Mission

SunCad's mission is to provide top quality designs, absolutely on time! We specialize in printed circuit design - and we're very good at it. Across the country, established industry leaders as well as innovative start-ups have consistently benefited from SunCad's utmost attention to detail.

Challenge us with your toughest design.
